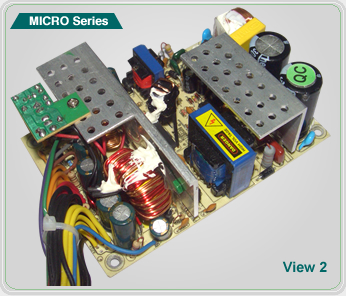

MINI-ITX Power ---- Micro ATX Power Supply |
|
|
 Output interface : |
|
|
 |
 |
 |
 |
 |
20+4 Pin Connector |
4 Pin Molex Connector |
SATA Connector |
4 Pin 12V Connector |
4 Pin Floppy Connector |
Output parameter : |
|
| Model：Micro Series |
| AC INPUT |
115V/230V 10A/6A 50-60Hz |
| DC OUTPUT |
+12V |
+5V |
+3.3V |
-12V |
+5VSB |
| 200W |
MAX
COMINEO
WATTS |
9A |
10A |
7A |
0.5A |
2.0A |
| 200W |
|
Electrical Specification : |
|
The Total Wattage Output :200W
Efficiency:> 75%
PFC (Power Factor Correction): (Bbased On Customer Requirements To Provide)
P.G. Signal :100-500 MS
Color: Metallic Silver (Which Can Be Provided In Accordance With Customer Requirements)
Size: Refer To Figure
Wire: Standard (Which Can Be Provided In Accordance With Customer Requirements)
Standard Exposed Length For Wire: .350 mm (Can Be Provided In Accordance With Customer Requirements)
Operating Temperature: 5 ℃ to 50 ℃
Storage Temperature: -40 ℃ to 70 ℃
Working Humidity: 20% to 85%, Non-Condensing
Storage Humidity: 10% to 95%, Non-Condensing
|
|
aracteristics and advantages : |
|
Over Power Protection, Over-Voltage Protection, Under-Voltage Protection,
Short Circuit Protection Etc.
High-Performance, High Reliability, Professional Design
Ample Current To Ensure Adequate Supply Real-Time Protection
（for+3.3V，+12V,+5.00V&+5.00VSB power output）
OCP：output shut down when output current reaches the peak point.
Short-circuit protection：output shut down when short-circuit.
High-Performance, High Reliability, Professional Design
Ample Current To Ensure Adequate Supply Real-Time
|
|
Application : |
|
Micro ATX Power Supply is Silent PSU with Temperature Control Fan,Micro ATX Power Supply is ATX 12V Compliant for all kinds of CPU and mainboard ,Micro ATX Power Supply is MTBF 50,000 Hours 25℃,Micro ATX Power Supply.
|
|
| |
