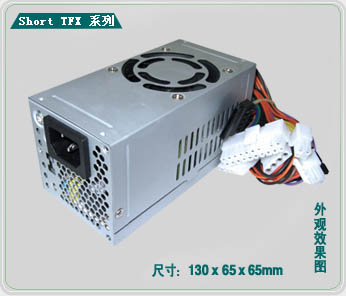

MINI-ITX Power ---- Short TFX ATX Power Supply



MINI-ITX Power ---- Short TFX ATX Power Supply



开关电源Output interface :
20+4PIN 4pin SATA p4 m4pin
20+4 Pin Connector
4 Pin Molex Connector
SATA Connector
4 Pin 12V Connector
4 Pin Floppy Connector
开关电源Output parameter :



MINI-ITX Power ---- Short TFX ATX Power Supply
AC INPUT 180V/264V 10A/6A 50-60Hz
DC OUTPUT +12V +5V +3.3V -12V +5VSB
120W MAX
COMINEO
WATTS
9A 10A 7A 0.5A 2.0A
MAX120W



开关电源Electrical Specification :



The Total Wattage Output :120W
Efficiency:> 75%
PFC (Power Factor Correction): (Bbased On Customer Requirements To Provide)
P.G. Signal :100-500 MS
Color: Metallic Silver (Which Can Be Provided In Accordance With Customer Requirements)
Size: Refer To Figure
Wire: Standard (Which Can Be Provided In Accordance With Customer Requirements)
Standard Exposed Length For Wire: .350 mm (Can Be Provided In Accordance With Customer Requirements)
Operating Temperature: 5 ℃ to 50 ℃
Storage Temperature: -40 ℃ to 70 ℃
Working Humidity: 20% to 85%, Non-Condensing
Storage Humidity: 10% to 95%, Non-Condensing


开关电源aracteristics and advantages :



Over Power Protection, Over-Voltage Protection, Under-Voltage Protection,
Short Circuit Protection Etc.
High-Performance, High Reliability, Professional Design
Ample Current To Ensure Adequate Supply Real-Time Protection
(for+3.3V,+12V,+5.00V&+5.00VSB power output)
OCP:output shut down when output current reaches the peak point.
Short-circuit protection:output shut down when short-circuit.
High-Performance, High Reliability, Professional Design
Ample Current To Ensure Adequate Supply Real-Time


开关电源Application :
The MINI-ITX Power supply -Short TFX ATX Power Supply can be customized according to your size,Compact MINI-ITX power supply Size Dimension:130mm*65mm*65mm.The MINI-ITX Power supply-Short TFX ATX Power Supply Applicable to all low-power ITX PC.The MINI-ITX Power supply-Short TFX ATX Power Supply Power output power and efficiency:output rated power: 100W
