24Watt Energy Star Ⅵ Compliant 12V2A AC-DC Power Adapter

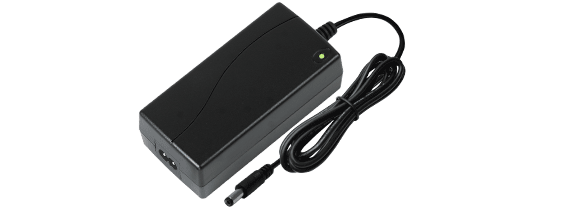

12V2A desktop power adapter 12V2A desktop power adapter

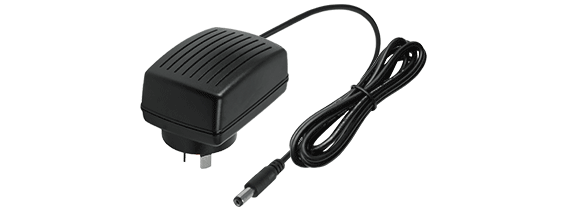

12V2A Wall-Mount Power adapter 12V2A Wall-Mount Power adapter
24Watt Energy Star Ⅵ Compliant 12V2A AC-DC Power Adapter constant voltage output,24Watt Energy Star Ⅵ Compliant 12V2A AC-DC Power Adapter DC ripple is small,High quality 12V4A power adapter



AC-DC Adapter 12V2A AC-DC Adapter Dc Power Jack: (On request)



DC PlugDC PlugDC PlugDC PlugDC PlugDC Plug

DC PlugDC PlugDC PlugDC PlugDC PlugDC Plug

AC-DC Adapter 12V2A AC-DC Adapter Product Description :



[Model]:ABT020120
[Brand]:ABT  (Accept OEM ODM Order)
[power]:24W
[Input Voltage]:AC 100-240V/47-63 Hz
[Output Voltage]:DC 12V/2A
[Color]:White / Black(On request)
[Safety Certification]:KC,RCM,CB,UL,TUV,CCC,BSMI,SAA,PSE,CE,FCC,C-TICK,NOM,cTUVus,GS,etc.
        Meet all related safety standard,Ultra low no-load/standby power consumption,
        meet CEC V,CEC,MEPS,ERP,CoC V5,DoE Ⅵ,ROHS,green power requirements.
        with IEC62368,IEC61558,IEC60335,IEC60950,UL1310,UL62368 Standard.

AC-DC Adapter 12V2A AC-DC Adapter Product Parameters :



[12V2A AC-DC Adapter Size]: ① 93.5*46.5*34mm② 80*52*35mm ③ 90*47*29.8mm
[12V2A AC-DC Adapter Protection]:Over-voltage Protection, Over-current Protection,
        Short Circuit Protection.
[12V2A AC-DC Adapter Reliability]:Temperature Rise (Burn-In): 85-95% Load For Each,
        40 ± 5 ℃, 4 Hours.Leakage Current: 0.25mA MAX 254VAC. Insulation
        Voltage (Between The Primary And Secondary): 3000VAC, 60S,10mA MAX .
        MTBF: According to MIL-HDBK-217F Standard, Full Load,
        25 ℃, More Than 50000 Hours.

AC-DC Adapter 12V2A AC-DC Adapter Product Features :



Built-In Anti-electromagnetic Interference Filter.
Super-Power Supply, Fixed Frequency Control Circuit To Ensure Stability
ToProvide Continuous Dynamic Long-Term Output Voltage For a Wide Range
Of Shift Electronic Equipment.
Well Designed, Lightweight Beautiful Appearance,
And Competitive Price. Low Empty Load And Standby
Energy Loss, In Line With The CEC Standard. Ultra-safe Design,
In Line With Safety Certification Of Different Countries.
12V2A Adapter Highly Efficient Circuit Design, Stable Performance,
Low Temperature. Humanity Directed Power Working Status.

AC-DC Adapter 12V2A AC-DC Adapter Application:



12V 2A AC/DC Adaptor for digital photo frame
100-240V AC to DC 12V 2A CCTV Cam Power adapter
LED Lights 12V2A AC-DC Adapter Power Supply
HDD Enclosure 12V2A AC-DC Adapter Power Supply
ADSL AC-DC Adapter Power Supply
DPF AC-DC Adapter Power Supply
12V 2A TV / LCD Adapter
Portable DVD AC-DC Adapter Power Supply
Stereo AC-DC Adapter Power Supply
Radio AC-DC Adapter Power Supply
Networking Security System Products Etc AC-DC Adapter Power Supply
Mini PC AC-DC Adapter Power Supply,PDA AC-DC Adapter Power Supply
LCD Television 12V2A AC-DC Adapter Power Supply
Laptop / Notebook 12V2A AC / DC Adapter
24Watt Energy Star Ⅵ Compliant 12V2A AC-DC Power Adapter constant voltage output,24Watt Energy Star Ⅵ Compliant 12V2A AC-DC Power Adapter DC ripple is small

AC-DC Adapter More shapes



AC/DC ADAPTER AC/DC ADAPTER
Shell 2
Shell 2
AC/DC ADAPTER AC/DC ADAPTER
Shell 2
Shell 2
AC/DC ADAPTER AC/DC ADAPTER
Exchangeable AC Plug
Desktop
