    Home >> products >> AC-DC Power Adapter >> 9V2.5A AC-DC Power Adapter

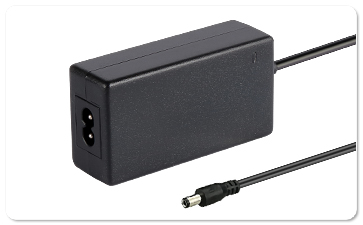

22.5W 9V2.5A ac dc power adapter





9V2.5A Wall-Mount Power adapter 9V2.5A Wall-Mount Power adapter
9V2.5A Wall-Mount Power adapter 9V2.5A Wall-Mount Power adapter
The 9V2.5A ac dc power adapter has good security performance. 9V2.5A ac dc power adapter is over hot protection, short circuit protection, RoHS compliance and UL GS KC PSE NOM RCM SAA etc.standard



AC-DC Adapter 9V2.5A AC-DC Adapter Dc Power Jack: (On request)



DC PlugDC PlugDC PlugDC PlugDC PlugDC Plug

DC PlugDC PlugDC PlugDC PlugDC PlugDC Plug

AC-DC Adapter 9V2.5A AC-DC Adapter Product Description :



[Model]:ABT025090
[Brand]:ABT  (Accept OEM ODM Order)
[power]:22.5W
[Input Voltage]:AC 100-240V/47-63 Hz
[Output Voltage]:DC 9V 2.5A
[Color]:White / Black(On request)
[Safety Certification]:KC,RCM,CB,UL,TUV,CCC,BSMI,SAA,PSE,CE,FCC,C-TICK,NOM,cTUVus,GS,etc.
        Meet all related safety standard,Ultra low no-load/standby power consumption,
        meet CEC V,CEC,MEPS,ERP,CoC V5,DoE Ⅵ,ROHS,green power requirements.
        with IEC62368,IEC61558,IEC60335,IEC60950,UL1310,UL62368 Standard.

AC-DC Adapter 9V2.5A AC-DC Adapter Product Parameters :



[9V2.5A AC-DC Adapter Size]: ① 93.5*46.5*34mm ② 80*52*35mm ③ 90*47*29.8mm
[9V2.5A AC-DC Adapter Protection]:Over-voltage Protection, Over-current Protection,
        Short Circuit Protection.
[9V2.5A AC-DC Adapter Reliability]:Temperature Rise (Burn-In): 85-95% Load For Each,
        40 ± 5 ℃, 4 Hours.Leakage Current: 0.25mA MAX 254VAC. Insulation
        Voltage (Between The Primary And Secondary): 3000VAC, 60S,10mA MAX .
        MTBF: According to MIL-HDBK-217F Standard, Full Load,
        25 ℃, More Than 50000 Hours.

AC-DC Adapter 9V2.5A AC-DC Adapter Product Features :



Built-In Anti-electromagnetic Interference Filter.
Super-Power Supply, Fixed Frequency Control Circuit To Ensure Stability
ToProvide Continuous Dynamic Long-Term Output Voltage For a Wide Range
Of Shift Electronic Equipment.
Well Designed, Lightweight Beautiful Appearance,
And Competitive Price. Low Empty Load And Standby
Energy Loss, In Line With The CEC Standard. Ultra-safe Design,
In Line With Safety Certification Of Different Countries.
9V2.5A Adapter Highly Efficient Circuit Design, Stable Performance,
Low Temperature. Humanity Directed Power Working Status.

AC-DC Adapter 9V2.5A AC-DC Adapter Application:



9V2.5A AC/DC Adaptor for digital photo frame
100-240V AC to DC 9V2.5A CCTV Cam Power adapter
LED Lights 9V2.5A AC-DC Adapter Power Supply
HDD Enclosure 9V2.5A AC-DC Adapter Power Supply
ADSL AC-DC Adapter Power Supply
DPF AC-DC Adapter Power Supply
9V2.5A DC/AC CCTV Camera Power Supply Switch Adapter
Portable DVD AC-DC Adapter Power Supply
Stereo AC-DC Adapter Power Supply
Radio AC-DC Adapter Power Supply
Networking Security System Products Etc AC-DC Adapter Power Supply
Mini PC AC-DC Adapter Power Supply,PDA AC-DC Adapter Power Supply
LCD Television 9V2.5A AC-DC Adapter Power Supply
9V2.5A power adapter wall mount type with UL,CEC,FCC,BSMI,CB,CE,LVD,TUV,C-TICK,3C

AC-DC Adapter More shapes



AC/DC ADAPTER AC/DC ADAPTER
Shell 2
Shell 2
AC/DC ADAPTER AC/DC ADAPTER
Shell 2
Shell 2
AC/DC ADAPTER AC/DC ADAPTER
Exchangeable AC Plug
Interchangeable AC plug
