12V 2A switching power adapter 12V2A Adapter
|
 |
 |
 |
 |
12V2A adapter,high quality,competitive price, high reliablity.Standby Powerd 0.1W Comply with CEC,EuP,MEPS,UL,CEC,FCC,BSMI,CB,CE,LVD,TUV,C-TICK,PSE,3C.12V 2A AC DC adapter |
| DC PLUG |
|
|
 |
 |
|
| The layout is limited, please consult customer service for more DC PLUG. |
|
|
 12V 2A AC/DC ADAPTER 12V 2000MA AC/DC ADAPTER Parameter
|
| |
|
|
● Model ：ABT020120 |
|
● Output voltage ：12V |
|
● Output current ：2A |
|
● Input voitage range ：100-240V AC |
|
● Input voltage frequency ：50-60Hz |
|
● Variation Frequency ：47~63Hz |
|
● Size ：MMS 93.5*46.5*34mm MTK 80*52*35mm |
|
● Standby power dissipation ：meet CoC V5,DoE Ⅵ |
|
● Safety Certification ：KC,RCM,CB,UL,TUV,CCC,BSMI,SAA,PSE,CE,FCC,C-TICK,NOM,cTUVus,GS,etc.
Meet all related safety standard,Ultra low no-load/standby power consumption,
meet CEC V,CEC,MEPS,ERP,CoC V5,DoE Ⅵ,ROHS,green power requirements.
with IEC62368,IEC61558,IEC60335,IEC60950,UL1310,UL62368 Standard.
|
|
12V 2A AC/DC ADAPTER 12V 2000MA AC/DC ADAPTER Product Reliability
|
|
|
● Ielectric Strength(Hi-pot) ：Primary to Secondary: 3000Vac 10mA 60S |
|
● Leakage Current ：0.25mA max. at 240Vac / 50Hz input |
|
● Protection ：Over-voltage Protection, Over-current Protection,Short Circuit Protection |
|
● ESD ：Contact discharge performance is 4KV;Air discharge performance is 8KV |
|
● Temperature Rise (Burn-In) : 85-95% Load For Each, 40 ± 5 ℃, 4 Hours. |
|
● Insulation Resistance ：100MΩ min. @ primary to secondary add a 500Vdc test voltage |
|
● EMC : EN55014/24/32/35 & EN61000 |
|
● Wide input voltage range, in line with global standards. |
|
● Dropping packed ：1 Corner 3 edges 6surfaces 100cm |
|
● MTBF: According to MIL-HDBK-217F Standard, Full Load, 25 ℃, More Than 50000 Hours |
|
● Vibration ：10 to 300Hz sweep at a constant acceleration of 1.0G(Breadth: 3.5mm) for 1Hour
for each of the perpendicular axes X, Y, Z |
|
|
12V 2A AC/DC ADAPTER 12V 2000MA AC/DC ADAPTER Features and Advantages
|
|
|
12V 2A 2000MA AC/DC ADAPTER,Ultra-safe Design, In Line With Safety Certification Of Different Countries
|
|
12V 2A AC/DC ADAPTER,Highly Efficient Circuit Design, Stable Performance, Low Temperature |
|
12V 2A AC/DC ADAPTER,Well Designed, Lightweight Beautiful |
|
|

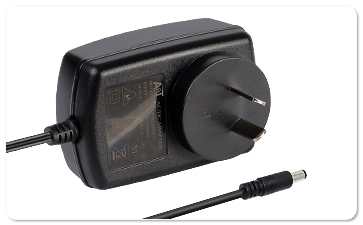

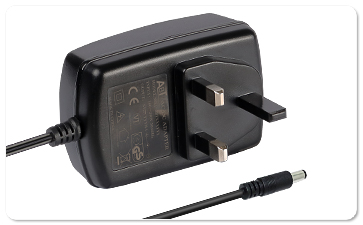

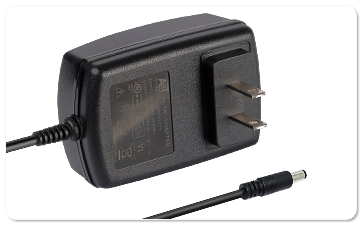

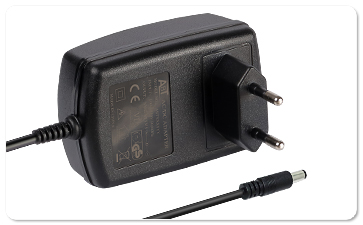

12V 2A AC/DC ADAPTER 12V 2000MA AC/DC ADAPTER AC Plug
|
 |
 |
Picture |
Picture |
 |
 |
Picture |
Picture |
 |
 |
Exchangeable AC Plug |
Desktop power adapter |
|
More similar adapter
|
|
|
|
